OEM/ODM 58U/59U Pump John Crane Seal Sewage Pumps Reactors Chemical Pumps Single Face Mechanical Seal

Name: OEMODM 58U59U Pump John Crane Seal Sewage Pumps Reactors Chemical Pumps Single Face Mechanical Seal
Brand: YUE MI
Price: 1 USD

Buy cheap OEM/ODM 58U/59U Pump John Crane Seal Sewage Pumps Reactors Chemical Pumps Single Face Mechanical Seal product

Brand Name : YUE MI

Model Number : 58U/59U

Certification : ISO SGS

Place of Origin : Guangzhou, China

MOQ : 5/PCS

Price : consult

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200/Set/Month

Delivery Time : 5-8 word days

Packaging Details : Details Carton

Replacement : Type John Crane Replacement

Maintenance : Low maintenance, Long service life

Hs Code : 848420090

Temperature Range : Up to 220°C

Seal Type : Single Mechanical Seal

Pressure : Up to 1.6 MPa

Application : Water Pump

Service : OEM&ODM

Sealing Face : Silicon carbide

Specification : VIT/SIC/SIC-VIT/SIC/CAR

Contact Now

Performance Capabilities:

Temperature	-40ºC to 150ºC, dependent on the elastomer
Pressure	≤1.7MPa
Speed	≤25m/s
End play/axial float allowance	±0.1mm
Size	14-100MM
Brand	BE
Face	Carbon, SiC, TC
Seat	Ceramic, SiC, TC
Elastomer	NBR, EPDM, etc.
Spring	SS304, SS316
Metal parts	SS304, SS316
Idividual Packing	Using foam and plastic paper wrapped, then put one piece of seal in one box,finally put in standard export carton.

OEM/ODM 58U/59U Pump John Crane Seal Sewage Pumps Reactors Chemical Pumps Single Face Mechanical Seal

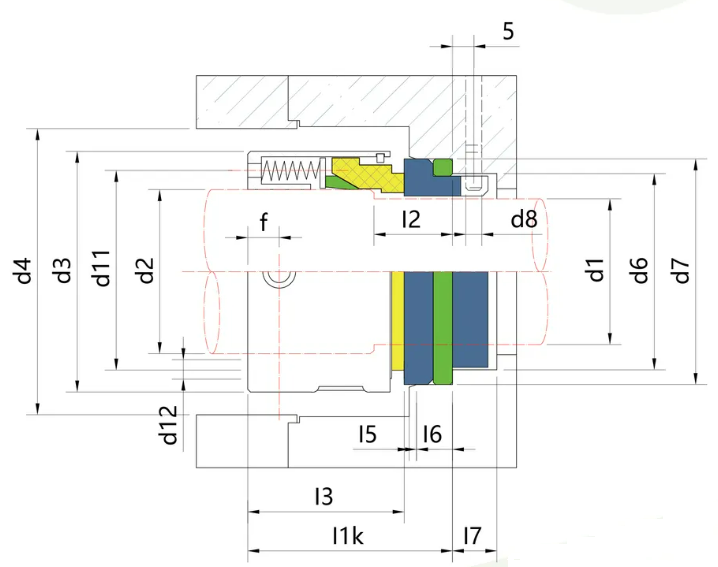

Seal Size d	D3	D2	D1	L1	L2	L3
14	24.0	21.0	25.0	23.0	12.0	18.5
16	26.0	23.0	27.0	23.0	12.0	18.5
18	32.0	27.0	33.0	24.0	13.5	20.5
20	34.0	29.0	35.0	24.0	13.5	20.5
22	36.0	31.0	37.0	24.0	13.5	20.5
24	38.0	33.0	39.0	26.5	13.5	20.3
25	39.0	34.0	40.0	27.0	13.0	20.0
28	42.0	37.0	43.0	30.0	12.5	19.5
30	44.0	39.0	45.0	30.5	12.0	19.0
32	46.0	42.0	48.0	30.5	12.0	19.0
33	47.0	42.0	48.0	30.5	12.0	19.0
35	49.0	44.0	50.0	30.5	12.0	19.0
38	54.0	49.0	56.0	32.0	13.0	20.0
40	56.0	51.0	58.0	32.0	13.0	20.0
43	59.0	54.0	61.0	32.0	13.0	20.0
45	61.0	56.0	63.0	32.0	13.0	20.0
48	64.0	59.0	65.0	32.0	13.0	20.0
50	66.0	62.0	70.0	34.0	13.5	20.5
53	69.0	65.0	73.0	34.0	13.5	20.5
55	71.0	67.0	75.0	34.0	13.5	20.5
58	78.0	70.0	78.0	39.0	13.5	20.5
60	80.0	72.0	80.0	39.0	13.5	20.5
63	83.0	75.0	83.0	39.0	13.5	20.5
65	85.0	77.0	85.0	39.0	13.5	20.5
68	88.0	81.0	90.0	39.0	13.5	20.5
70	90.0	83.0	92.0	45.5	14.5	21.5
75	99.0	88.0	97.0	45.5	14.5	21.5
80	104.0	95.0	105.0	45.0	15.0	22.0
85	109.0	100.0	110.0	45.0	15.0	22.0
90	114.0	105.0	115.0	50.0	15.0	22.0
95	119.0	110.0	120.0	50.0	15.0	22.0
100	124.0	115.0	125.0	50.0	15.0	22.0

Operational Conditions:

John Crane seal 58U is structural simple and reliable. It has a wide application scope.
58U, mechanical seal is suitable for clean water pumps, sewage pumps, submerged pumps, process pumps, etc.
This also can provide important material certifications available. Salvador, Senior, Sandy.
Temperature: -30ºC to 200ºC, depend on o-ring material
Pressure: Up to 1.7 bar
Speed: Up to 25 m/s
End play/axial float allowance ±1mm

Materials:
Stationary Ring: Ceramic, Silicon Carbide, TC
Rotary Ring: Carbon, Silicon Carbide
Secondary Seal: NBR, EPDM, PTFE
Spring and Metal Parts: SUS304/SUS316
3. Seat Type:
4. Applications: Clean water, sewage water, oil and other moderately corrosive fluids

OEM/ODM 58U/59U Pump John Crane Seal Sewage Pumps Reactors Chemical Pumps Single Face Mechanical Seal

FAQ

Question 1: Are you a factory or a trading company?
Answer: We are a factory manufacturing mechanical seals. We have regular models in stock and customized products are also available. Please feel free to contact us if you need any.

Question 2: What is the minimum order quantity for each order?
Answer: For products of regular models, the minimum order quantity is at least ten. We welcome you to test the quality of our products and our services through small orders and look forward to long-term cooperation with you next.

Question 3: How can I pay my order?
Answer: We accept T/T, Paypal, D/P, Western Union, Money Gram to pay.

Question 4: Can I try to get a Sample before the order?
Answer: Sure. But our company can not provides you with samples for free, and you also have to pay for the international delivery (freight collect payment)
