104 Mechanical Seal Dyeing Tank / Printing / Emulsifying Pot TC/TC/FKM

  • 1
  • 2
  • 3

Brand Name : YUE MI

Model Number : 104-TCTC

Certification : ISO SGS

Place of Origin : Guangzhou, China

MOQ : 20/PCS

Price : consult

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200/Set/Month

Delivery Time : 5-8 word days

Packaging Details : Details Carton

Secondary Seals : NBR, EPDM, Viton

Seal Face : SS304/SS316/Sic/Tc

Seat : Ceramic, Sic, Tc

Sku : 104

Support : OEM/ODM

Number Of Row : Double row

Warranty : water pump bearing

Stationary Ring : Ceramic/Sic/TC

Pump : Water Pump and Circulation Pumps

Spring Material : Stainless Steel,

Country Of Origin : China

Contact Now

104U series specifictIion:

Seal Type 104U series
Shaft size Full size(16-120mm)
Temperature -20 degree to 180 degree
Pressure not supaass 1.0MPa
Speed Up to 3000R/MIN
Face SIC,TC
Seat Carbon ,Sic,TC
Elastomer NBR,EPDM,VITON,
Spring SS304 SS316
Metal parts SS304   SS316

104 Mechanical Seal Dyeing Tank / Printing / Emulsifying Pot TC/TC/FKM

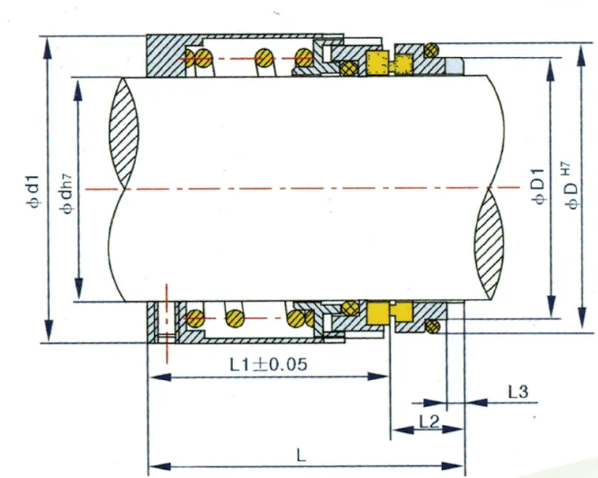

SIZE d D D1 D2 L L1 L2 L3
20 20 40 30 37 63 44 16 58
22 22 42 32 39 67 48 20 62
25 25 45 35 42 67 48 20 62
30 30 50 40 52 75 56 22 70
35 35 55 45 57 79 60 26 74
40 40 60 50 62 83 64 30 78
45 45 65 55 67 90 71 36 85
50 50 70 60 72 94 75 40 89
55 55 70 60 77 94 75 40 89
60 60 80 70 82 96 77 42 91
65 65 90 80 92 111 89 50 106
70 70 97 85 97 116 91 52 110
75 75 102 90 102 116 91 52 110
80 80 107 95 107 123 98 59 117
85 85 112 100 112 125 100 59 119
90 90 117 105 117 126 101 60 120
100 100 127 115 127 126 101 60 120
