Mechanical Seal Glf-12mm 16mm 22mm Replace Grundfos Type H Seals For Grundfos Pump Cr

  • 1
  • 2
  • 3

Brand Name : YUE MI

Model Number : GLF-12,16,22

Certification : ISO SGS

Place of Origin : Guangzhou, China

MOQ : 50/PCS

Price : consult

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000/Set/Month

Delivery Time : 5-8 word days

Packaging Details : Details Carton

Number Of Row : Single Row

For : GLF pump

Outside Diameter : 12,16,22mm

Leadtime : Fast to Ship

Specification : VIT/SIC/SIC

Face : SIC/SIC/VITON

OEM : YES

Type : Hqqe

Quality Control : 100% Control

Contact Now

It is suitable to GLF Pumps:
Model:CR1,3,5,10,15,20,32,45,64,90;
Model:CRN1,3,5,10,15,20,32,45,64,90





Working Conditions
Temperature:-30ºC to 180ºC
Pressure: ≤1.0MPa
Speed: ≤10m/s

Materials
Faces: Sic,Ssic,TC,Car
Secondary Seal : Viton ,EPDM, NBR
Metal Parts : SUS304,SUS316
springs: SUS304,SUS316





Product Description
Description: Mechanical Seal HQQE Series
Material : Sic/Sic/V and TC/TC/V		 Operating Limits
Temperature: - 30ºC~+200ºC
Pressure: ≤10Mpa
Speeds:≤12m/s
Application: seals are primarily used in in Clean water,sewage water,oil and other moderately corrosive fluids etc.It is ideal with high or pulsing counterpressure or with viscous or sticky fluids.
Suit to replace original mechanical seal:
CRIL shaft size 3,5,10,15,20,32,45,64,90HQQE
Standard:the products are in according with Din24960,ISO3069,en12576,API682 standards



Mechanical Seal Glf-12mm 16mm 22mm Replace Grundfos Type H Seals For Grundfos Pump CrMechanical Seal Glf-12mm 16mm 22mm Replace Grundfos Type H Seals For Grundfos Pump CrMechanical Seal Glf-12mm 16mm 22mm Replace Grundfos Type H Seals For Grundfos Pump Cr

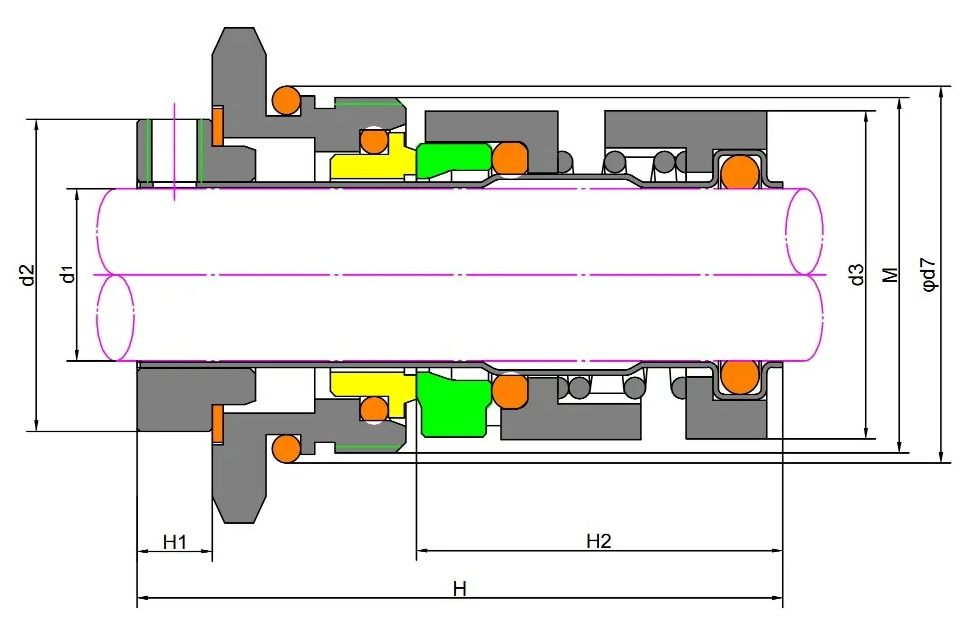

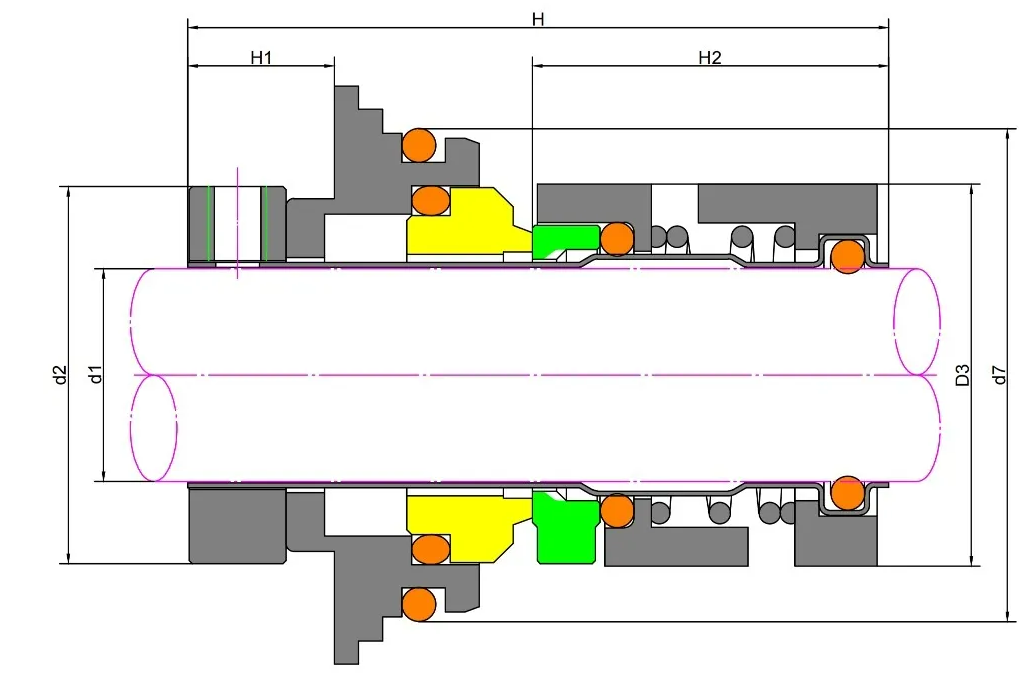

d D1 D2 D3 D4 L L1 L2
12 25 29 33.5 25 55.5 4 44.5
16 30.5 34 40.5 29 58 5 46
