Mg1 Mechanical Seal ABS Pump Type Mechanical Seal For Water / Oil Pump

Brand Name : YUE MI

Model Number : ABS/MG

Certification : ISO SGS

Place of Origin : Guangzhou, China

MOQ : 5/PCS

Price : consult

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000/Set/Month

Delivery Time : 5-8 word days

Packaging Details : Details Carton

Elatomer : NBR, EPDM, Viton, FEP etc

Support : Non-Standard Customization

Key Word : ABS mechanical seal

Installation Type : Internal or External

Secondary Seal : Nitrile Rubber

Sku : MG1 ABS

Quality Control : 100% Control

Standard Or Nonstandard : Standard seal

Customization : Accept

Contact Now




Name
ABS MG Type Mechanical Seal for Water/Oil Pump

Model
MG/ABS

Size
Customized

Application
Pump

Material
CA/CE/SIC/TC/NBR/EPDM/V/S.S/SUS304/SUS316

Delivery
7-20 days,it depends on the quantity,If have stock it about 2-3 days

Certificate
** ISO9001
** CQC
** SGS
** CNAS







DETAILS

Shaft Size 10-100mm
Material Face: Carbon, SiC, TC
Seat: Ceramic, SiC, TC
O-rings:NBR, EPDM, VITON
Other Metal Parts : SS316, SS304
Temperature -30°C to 200°C, dependent on the elastomer
Pressure Up to 12 bar
Speed Up to 12 m/s

Mg1 Mechanical Seal ABS Pump Type Mechanical Seal For Water / Oil Pump

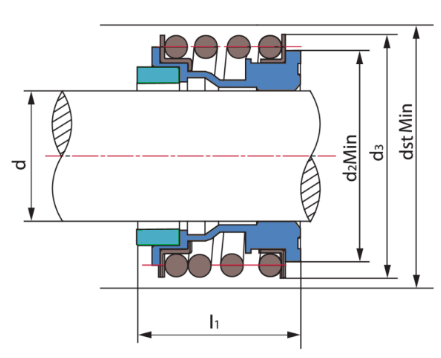

Seal size d(mm) d d2 d3 dst l1
8 8 17.5 19.0 23 12.5
10 10 20.5 22.5 24 14.5
12 12 22.5 25.0 26 15.0
14 14 26.5 28.5 30 17.0
15 15 26.5 28.5 30 17.0
16 16 26.5 28.5 30 17.0
18 18 29.0 32.0 33 19.5
19 19 33.0 37.0 38 21.5
20 20 33.0 37.0 38 21.5
22 22 33.0 37.0 38 21.5
24 24 38.0 42.5 44 22.5
25 25 38.0 42.5 44 23.0
28 28 44.0 49.0 50 26.5
30 30 44.0 49.0 50 26.5
32 32 46.0 53.5 55 27.5
33 33 46.0 53.5 55 27.5
35 35 50.0 57.0 59 28.5
38 38 53.0 59.0 61 30.0
40 40 55.0 62.0 64 30.0
42 42 58.0 65.5 67 30.0
43 43 58.0 65.5 67 30.0
45 45 60.0 68.0 70 30.0
48 48 63.0 70.5 74 30.5
50 50 65.0 74.0 77 30.5
53 53 70.0 78.5 81 33.0
55 55 72.0 81.0 83 35.0
58 58 75.0 85.5 88 37.0
60 60 79.0 88.5 91 38.0
65 65 84.0 93.5 96 40.0
68 68 88.0 96.5 100 40.0
70 70 90.0 99.5 103 40.0
75 75 95.0 107.0 110 40.0
80 80 100.0 112.0 116 40.0
85 85 107.0 120.0 124 41.0
90 90 114.0 127.0 131 45.0
95 95 119.0 132.0 136 46.0
100 100 124.0 137.0 140 47.0
