G3 Mechanical Seal Bqqe Pump Seal Glf Below Rubber Seals For GRUNDFOS-PUMP

Name: G3 Mechanical Seal Bqqe Pump Seal Glf Below Rubber Seals For GRUNDFOSPUMP
Brand: YUE MI
Price: 1 USD

Buy cheap G3 Mechanical Seal Bqqe Pump Seal Glf Below Rubber Seals For GRUNDFOS-PUMP product

Brand Name : YUE MI

Model Number : G3

Certification : ISO SGS

Place of Origin : Guangzhou, China

MOQ : 1/PCS

Price : consult

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100/Set/Month

Delivery Time : 5-8 word days

Packaging Details : Details Carton

Style : mechanical seal for sanitary pump

Spring Material : Stainless Steel

Traemark : YUEMI

Secondary Seal : NBR, EPDM, VIT

Shaft Diameter : 12mm,16mm

Face Material : Silicon Carbide

Seal Face : Carbon vs Ceramic

Transport Package : as Requirement

Rotary Ring : Carbon, Silicon Carbide, Tc

Standard Or Nonstandard : standard

Contact Now

Short Cartridge Mechanical Seal For Grundfos Pumps, Replace Type B Latty GS4 Lidering GR-B
Temperature:-20ºC to +180ºC Pressure:≤1.2Mpa Speed:≤10m/s	Material: Rotary Ring (Carbon/SIC) Stationary Ring (SiC/TC) Secondary Seal(EPDM/VITON) Spring &Other Parts(SUS304/SUS316)
Suit for CH,CHI,CHE,CRK,SPK,TP,AP,CR,CRN,NK,TP, LM(D)/LP(D),NM/NP,DNM/ Series Pumps

Seal Type	BQQE series
Shaft size	Full size(12-16MM)
Temperature	-30 degree to 200degree
Pressure	not supaass 1.2MPa
Speed	Up to 10M/MIN
Face	SIC,TC,CAR
Seat	Carbon ,Sic,TC,CER
Elastomer	NBR,EPDM,VITON,
Spring	SS304 SS316
Metal parts	SS304 SS316

G3 Mechanical Seal Bqqe Pump Seal Glf Below Rubber Seals For GRUNDFOS-PUMP

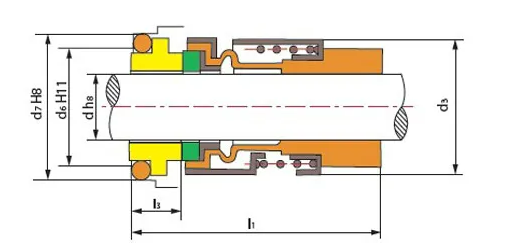

Seal size d(mm)	d3	d6	d7	l1	l3
12	22	19	23	39.0	7.6
12A	22	19	23	34.0	7.6
15	26	23	27	39.0	8.7
16	26	23	27	39.0	8.7

Grundfos Seals which can use in different fields.

Our Mechanical seal model G3 is widely used for GRUNDFOS-PUMP. The normal material

combination include SIC/SIC/NBR/VION/SS304,TC/TC/NBR/SS304/,TC/TC/viton/ss316 and soon.
we also can make changes as customers'requirement or totally design a new type of mechanical seal to meet clients'needs.

Operating Limits:
Pressure: ≤1.2MPa
Speed: ≤10m/s
Temperature: -30ºC~+200ºC

Rotary Ring (SiC/TC)
Stationary Ring (Carbon/SiC/TC)
Secondary Seal (NBR/VITON)
Retainer (SUS304/SUS316)
Spring (SUS304/SUS316)
