Pump 301 Series Mechanical Seals Water Seal Ap Pressure Seal Bt Ap Mechanic

Name: Pump 301 Series Mechanical Seals Water Seal Ap Pressure Seal Bt Ap Mechanic
Brand: YUE MI
Price: 1 USD

Buy cheap Pump 301 Series Mechanical Seals Water Seal Ap Pressure Seal Bt Ap Mechanic product

Brand Name : YUE MI

Model Number : 301 SSN

Certification : ISO SGS

Place of Origin : Guangzhou, China

MOQ : 1/PCS

Price : consult

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100/Set/Month

Delivery Time : 5-8 word days

Packaging Details : Details Carton

Size Of Product : 301 SIC/SIC

Function : WATER Pump

Usage : Unbalanced

Seal : Submersible Pump Seal

Operating Conditions : Clean Water, Sewage Water, Oil, Chemicals

Shaft Diameter : 10mm-70mm

Operating Temperature : -20～135℃

Model : YM301

Material : Carbon, Ceramic, Stainless Steel

Contact Now

Product Description

Working Conditions
Mediums: Petroleum products,chemical solvents,medium and weak corrsive acids, etc.
Temperature: -30ºC~+120 ºC
Pressure: ≤0.6 MPa
Speed: ≤ 15 m/s

Combined Materials
Rotary Ring : Carbon / Sic / TC
Stationary Ring : Ceramic / Sic / TC
Secondary Seal : NBR / EPDM / Viton
Spring and Metal Parts: SUS304 / SUS316

Pump 301 Series Mechanical Seals Water Seal Ap Pressure Seal Bt Ap Mechanic

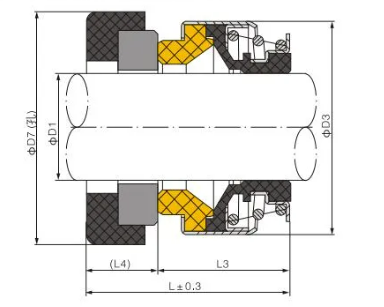

Size d(mm)	D3	D1	L	L2
301-10	24	26.0	21.0	8.0
301-11	24	26.0	21.0	8.0
301-12	24	25.0/26.0	21.0	8.0
301-13	24	26.0	19.5	5.5/8.0
301-13L	28	28.0	21.0	8.0
301-13H	32	29.5	30.5	8.0
301-14	28	28.0/28.5	21.0	8.0
301-14L	32	29.5	21.0	8.0
301-15S	28	28.5/30.0	21.0	8.0
301-15M	32	30.0/29.5	21.0	8.0
301-15L	39	38.0	21.0	8.0
301-16S	28	29.5/30.0	21.0	8.0
301-16M	32	29.5	21.0	8.0
301-16L	39	38.0	21.0	8.0
301-16H	32	30.0	21.0	10.0
301-17	39	42.0	21.0	8.0
301-18	39	42.0	21.0	8.0
301-19	39	42.0	21.0	8.0
301-20	39	42.0	21.0	8.0
301-20L	42	45.0	23.0	10.0
301-22S	36	45.0	26.5	10.0
301-22L	42	45.0	23.0	10.0
301-23	47	50.0	23.5	10.0
301-24	47	50.0	23.5	10.0
301-25	42	50.0	23.5	10.0
301-25L	47	50.0	23.5	10.0
301-26	47	50.0	23.5	10.0
301-27	47	50.0	23.5	10.0
301-28	54	57.0	25.0	10.0
301-30	54	57.0	25.0	10.0
301-32	54	57.0	25.0	10.0
301-35	60	63.0	26.0	10.0
301-38	65	68.0	30.0	12.0
301-40	65	68.0	30.0	12.0
301-45	70	73.0	32.0	12.0
301-50	85	88.0	38.0	15.0
301-55	85	88.0	38.0	15.0
301-60	105	110.0	45.0	15.0
