Operating conditions Materials:
Temperature:-40ºC~150ºC
Rotary ring (Carbon/SIC/Inserted TC)
Pressure:≤1.6MPa Stationary ring (SIC/Inserted TC)
Speed:≤20m/sec Secondary seal (NBR/EPDF/VITON)
Spring&Other parts (SUS304/SUS316)
Applications:Rotary pumps, agitators and other rotating equipment are widely used in various centrifugal pumps,
chemical pumps and corrosion-resistant pumps.
Mechanical seal-multiple spring which are availble in a wide varietyh of elastomers for handing practically every industril fluid. All components are held togther by a snap ring in a unized construction design and can be repaired easily on-site.
High Quality Mechanical Seals
Replacement to:
1. Operational Conditions:
Temperature: -20ºC to +180ºC
Pressure: ≤1.0MPa
Speed: ≤15m/s
2. Materials:
Stationary Ring: Silicon Carbide, Carbon, TC
Rotary Ring: Silicon Carbide, TC
Secondary Seal: NBR, EPDM, Viton
Spring and Metal Parts: Steel
3. Applications: Clean water, sewage water, oil and other moderately corrosive fluids
Operational Conditions: | |
Temperature: |
-30ºCto+200ºC |
Pressure: |
≤1.2MPa |
Speed: |
≤20m/s |
Materials: | TC/TC |
Stationary Ring: |
Q2,U2,B |
Rotary Ring: |
Q2,V1,U2 |
Secondary Seal: |
P,E,V |
Spring and Metal Parts: |
F,G |
Applications: |
Clean water, sewage water, Oil and other moderately corrosive fluids |

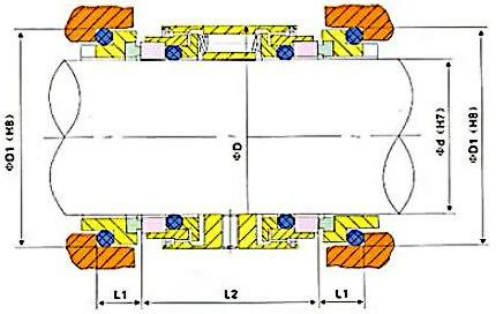

| | Q | D1 | D2 | L1 | L2 |
| 202-20 | 20 | 38 | 35 | 11.5 | 39 |
| 202-25 | 25 | 43 | 40 | 11.5 | 39 |
| 202-30 | 30 | 48 | 45 | 11.5 | 42 |
| 202·35 | 35 | 53 | 50 | 12 | 40 |
| 202-40 | 40 | 61 | 58 | 12 | 45 |
| 202-45 | 45 | 66 | 63 | 12 | 45 |
| 202.50 | 50 | 73 | 70 | 13 | 46 |
| 202-55 | 55 | 78 | 75 | 13 | 46 |
| 202-60 | 60 | 83 | 80 | 14 | 56 |
| 202-65 | 65 | 88 | 85 | 14 | 56 |
| 202-70 | 70 | 95 | 92 | 17 | 58 |
| 202-75 | 75 | 100 | 97 | 17 | 58 |
