Wemco Hidrostal Pump Kb Mechanical Seal Rubber Bellows Sanitary Pump Seal

Name: Wemco Hidrostal Pump Kb Mechanical Seal Rubber Bellows Sanitary Pump Seal
Brand: YUE MI
Price: 1 USD

Buy cheap Wemco Hidrostal Pump Kb Mechanical Seal Rubber Bellows Sanitary Pump Seal product

Brand Name : YUE MI

Model Number : Hi-drostal

Certification : ISO SGS

Place of Origin : Guangzhou, China

MOQ : 1/PCS

Price : consult

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100/Set/Month

Delivery Time : 5-8 word days

Packaging Details : Details Carton

Item : Hidrostal

Features : High Temperature Resistance, Corrosion Resistance, High Pressure Resistance

Export Area : All Over The World

Stationary Ring : SIC/SIC,SIC/CER

For : Sanitary pump

Spring : Stainless Steel

Function : Hidrostal Pump

Contact Now

Product Description

Mechanical seals compatible for Hi-drostal® pumps.
Type M and Type G and X seals are available.
Possibility of supplying these special designs for different shaft diameters in inches.

Equivalent with HIDROSTAL PUMPS seals
Shaft size:5/8 inch, 1 1/8 inch, 1 1/2 inch,2 inch, 28mm, 35mm and 50mm .

(If you need other sizes, please contact with us).

Wemco Hidrostal Pump Kb Mechanical Seal Rubber Bellows Sanitary Pump Seal

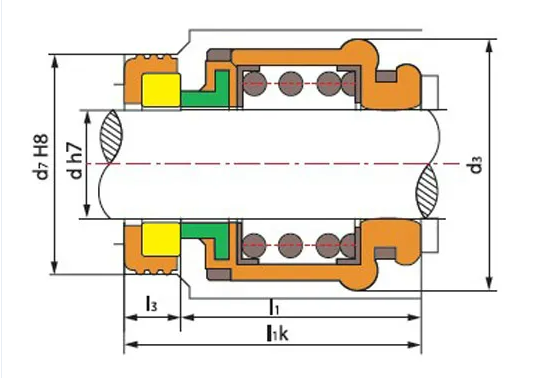

Seal size (mm)		d		d3		d7		l1k		l1		b
28		28 35 50		50.0 64.0 74.5		44 54 70		40.0 45.5 57.4		30.0 35.5 45.2		10.0 10.0 12.2
35
50
Seal size (inch)	d		d3		d7		l1k		l1		b
1-1/8"	28.575 38.100 50.800		50.0 66.0 75.5		44.450 53.975 69.850		41.1 45.5 58.2		30.0 35.5 45.2		11.1 10.0 13.0
1-1/2"
2"

Mechanical Seals for Hidristahle HIDROSTAL

Temperature	-30ºC to 200ºC, Dependent on the elastomer
Pressure	Up to 10 bar
Speed	Up to 15 m/s
End play/axial float allowance	±0.1mm
Brand	yuemi
Size	1 1/8' , 1 1/2" , 2.000"
Face	Carbon,Sic,TC
Seat	SiC,TC
Elastomer	NBR, EPDM, VITON
Spring	SS304, SS316
Metal parts	SS304, SS316
