Bur-gmann New MG1 TD Rubber Bellow Mechanical Seal Replacement Water Pump Seal

  • 1
  • 2
  • 3

Brand Name : YUE MI

Model Number : MG1 TD

Certification : ISO SGS

Place of Origin : Guangzhou, China

MOQ : 1/PCS

Price : consult

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100/Set/Month

Delivery Time : 5-8 word days

Packaging Details : Details Carton

Pump : pump SEAL

Bearing : Nuetral, customised

Stainless Steel Material : SS304.SS316

Structure : Conical Spring

Standard Or Nonstand : Standard

Origin : Guangzhou, China

Spring : Stainless Steel

Elatomer : NBR, EPDM, Viton

Tungsten Carbide Seal : Water Pump Seal

Service : OEM&ODM

Spring Material : Stainless Steel

Face Material : Carbon Sic Tc

Contact Now



Product Description

Working Conditions
Mediums: All types of rotating equipment,such us centrifugal
pumps.agitators,for most general and light chemical duties ,
wherever an elastomer Secondary Seal can be used .
Temperature: -30ºC~200ºC
Pressure: ≤1.2MPa
Speed: ≤12m/Sec

Combined Materials
Stationary Ring (Ceramic / Sic / TC)
Rotary Ring (Carbon / Sic / TC)
Secondary Seal (NBR / EPDM / Viton)
Spring and Punched Parts ( Steel )

Detailed Photos





Bur-gmann New MG1 TD Rubber Bellow Mechanical Seal Replacement Water Pump Seal

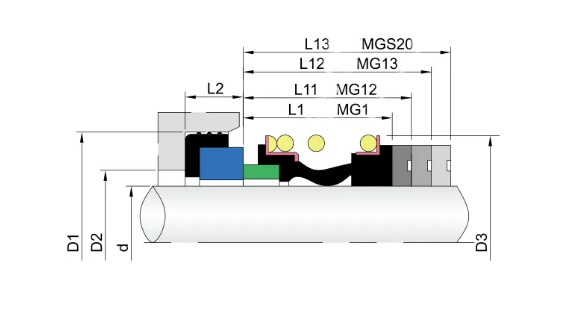

Product Parameters

D1(mm) Size Code D3 D7 L4 L1 L11 L12
10 0100 24.00 21.00 6.60 14.50 25.90 33.40
12 0120 24.00 23.00 6.60 15.00 25.90 33.40
14 0140 28.00 25.00 6.60 17.00 28.40 33.40
15 0150 28.00 27.00 6.60 17.00 28.40 33.40
16 0160 28.00 27.00 6.60 17.00 28.40 33.40
18 0180 31.00 33.00 7.50 19.50 30.00 37.50
20 0200 36.00 35.00 7.50 21.50 30.00 37.50
22 0220 36.00 37.00 7.50 21.50 30.00 37.50
24 0240 40.50 39.00 7.50 22.50 32.50 42.50
25 0250 41.00 40.00 7.50 23.00 32.50 42.50
28 0280 47.00 43.00 7.50 26.50 35.00 42.50
30 0300 47.00 45.00 7.50 26.50 35.00 42.50
32 0320 51.00 48.00 7.50 27.50 35.00 47.50
33 0330 51.00 48.00 7.50 27.50 35.00 47.50
35 0350 55.00 50.00 7.50 28.50 35.00 47.50
38 0380 58.00 56.00 9.00 30.00 36.00 46.00
40 0400 60.00 58.00 9.00 30.00 36.00 46.00
43 0430 63.30 61.00 9.00 30.00 36.00 51.00
45 0450 65.00 63.00 9.00 30.00 36.00 51.00
48 0480 69.00 66.00 9.00 30.50 36.00 51.00
50 0500 71.00 70.00 9.50 30.50 38.00 50.50
53 0530 76.00 73.00 11.00 33.00 36.50 59.00
55 0550 78.00 75.00 11.00 35.00 36.50 59.00
58 0580 82.00 78.00 11.00 37.00 41.50 59.00
60 0600 85.00 80.00 11.00 38.00 41.50 59.00
65 0650 90.00 85.00 11.00 40.00 41.50 69.00
68 0680 94.00 90.00 11.30 40.00 48.70 68.70
70 0700 97.00 92.00 11.30 40.00 48.70 68.70
75 0750 102.00 97.00 11.30 40.00 48.00 68.70
80 0800 108.00 105.00 12.00 40.00 48.00 78.00
85 0850 117.00 110.00 14.00 41.00 46.00 76.00
90 0900 126.00 115.00 14.00 45.00 51.00 76.00
95 0950 131.00 120.00 14.00 46.00 51.00 76.00
100 1000 136.00 125.00 14.00 47.00 51.00 76.00






Replacement to:
Burgmann MG1, Vulcan 19,DIMER TCP.1-60, AESSEAL B02, AESSEAL B09U, Anga A1, Flowserve 190, Hermetyka M212.N2, Latty T700, LIDERING LRB17, Roten L3, Sterling SMG1, US SEAL VGMC-1


Applications:
Clean water,
sewage water
oil and other moderately corrosive fluids
