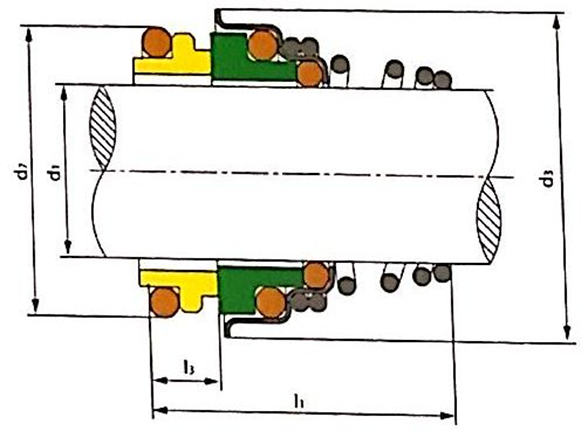

Application water pump model pairing table
| Model | d1(mm) | d3 | d7 11 13 |
| 155B-10 | 10 | 20 | 21 | 15.2 | 7 |
| 155B-12 | 12 | 22 | 23 | 18.2 | 7 |
| 155B-14 | 14 | 25 | 25 | 22.2 | 7 |
| 155B-16 | 16 | 29 | 27 | 23.2 | 7 |
| 155B-18 | 18 | 33 | 33 | 24.2 | 10 |
| 155B-20 | 20 | 33 | 35 | 25.2 | 10 |
| 155B-22 | 22 | 38 | 37 | 25.2 | 10 |
| 155B-24 | 24 | 38 | 39 | 27.2 | 10 |
| 155B-25 | 25 | 40 | 40 | 27.2 | 10 |
| 155B-28 | 28 | 46 | 43 | 29.2 | 10 |
| 155B-30 | 30 | 46 | 45 | 30.2 | 10 |
| 155B-32 | 32 | 46 | 48 | 30.2 | 10 |
| 155B-33 | 33 | 48 | 48 | 39.2 | 10 |
| 155B-35 | 35 | 50 | 50 | 39.2 | 10 |
| 155B-38 | 38 | 56 | 56 | 42.2 | 13 |
| 155B-40 | 40 | 58 | 58 | 42.2 | 13 |
DETAILS
| Shaft Size | 10-40mm |
| Material | Face: Carbon, SiC, TC
Seat: Ceramic, SiC, TC
O-rings:NBR,EPDM,FKM,Aflas,FEP,Kalrez,Chemraz etc
Spring:SS304, SS316
Other Metal Parts : SS304, SS316 |
| Performance Capabilities | Temperature:-30°C to 200°C, depends on o-ring material
Pressure: Up to 8bar
Speed: Up to 10m/s
End play/axial float allowance: ±1mm |
Preperation:
1. Shaft Outside Diameter is within tolerance +-0.05mm
2. Shaft run out <0.1mm
3. Shaf end float <0.13mm
4, No sharp edges on the shaft over the o ring
Note:
During the installation,don't scratch or damage the o ring.lf anything is damaged,please contactwith Us to replace a new one.
Installation in strucstions:
1. The full set of cartridge seal is cleaned and exactly passed leakage examine before sale.Inorder to avoid damage,don't disassemble and clean the parts again before fixing.
2 The fitting allowance between the seal and shaft is dl h6 0.8,and there should be leading-inedge at the end of shaft.The outside diameter of shaft at the position of screw should be 01 0.2mm smaller,resisting the screw over-tighten.Lubricate the shaft with oil
3. Place the cartridge seal into the pump chamber,then:
A: Tighter four screw bolts of flanges,ensuring the medium leading in hole"G"at the top Position
B : Tighter four set screws and position the shaft sleeve on the shaft.
C: Remove four gauge plates.Please keep them and they wil be used in future installation and
disassemble.
D: Connect the medium lead_in pipe with hole"G"in order to flush away the friction heat and
flushing the seal chamber when pump running.
Note:
ter complete the installation,turning the shaft by hand to check for the rotationi he shat could not rotate smoothily,seal had been improperly installed.
